||The GLG Map
Server can render millions of points in every map requested by
This allows the Map Server to render many vector features such as
roads, populated areas, lakes and rives, shorelines and a variety of
other GIS data with an exceptional level of details.
The map server automatically switches layers based on the layers' zoom thresholds and the current zoom factor, and it uses a tile cache for faster rendering.
|As the user
zooms into an
image the vector data will always appear crisp and precise
regardless of the resolution of the image. The vector data
is ideal for representing elements such as cities, towns, roads
streets, populated areas, political boundaries, as well as other
landmarks and areas of
interests in a map image. A variety of vector formats are supported.

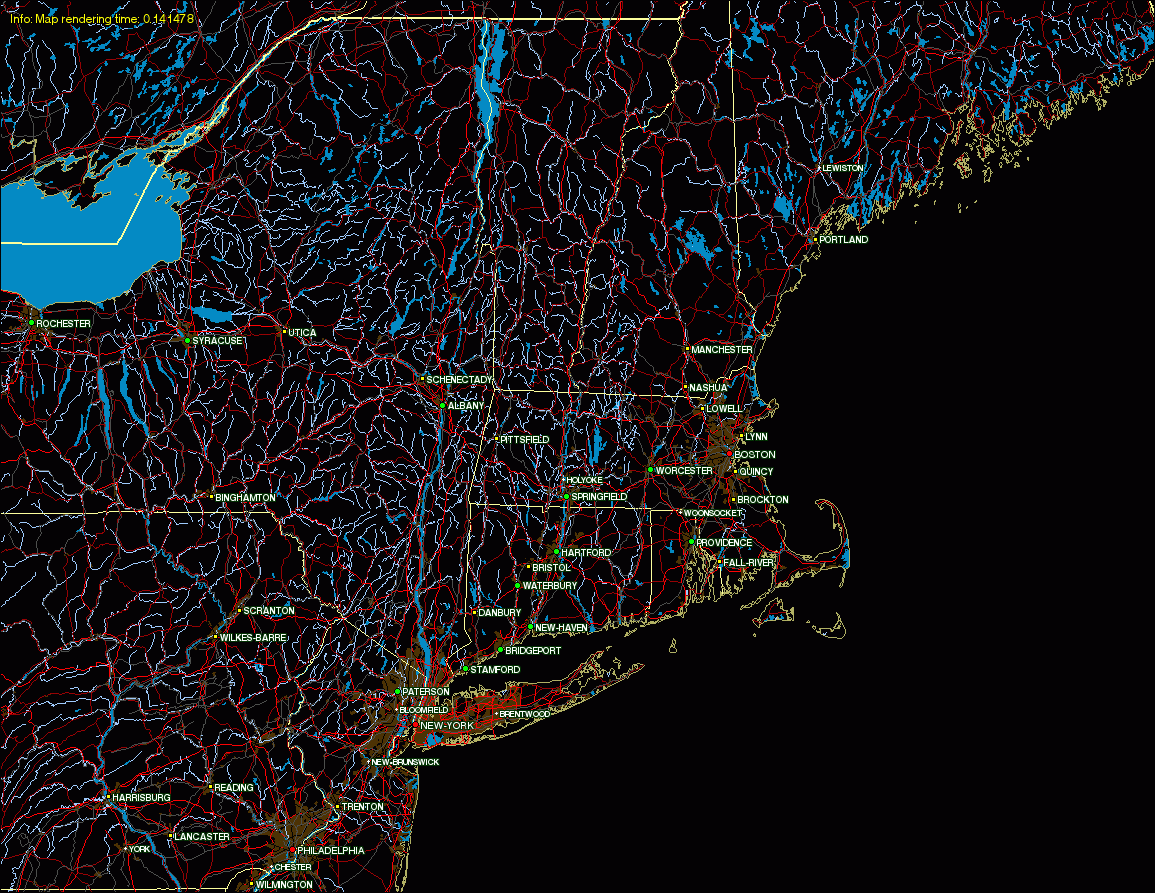

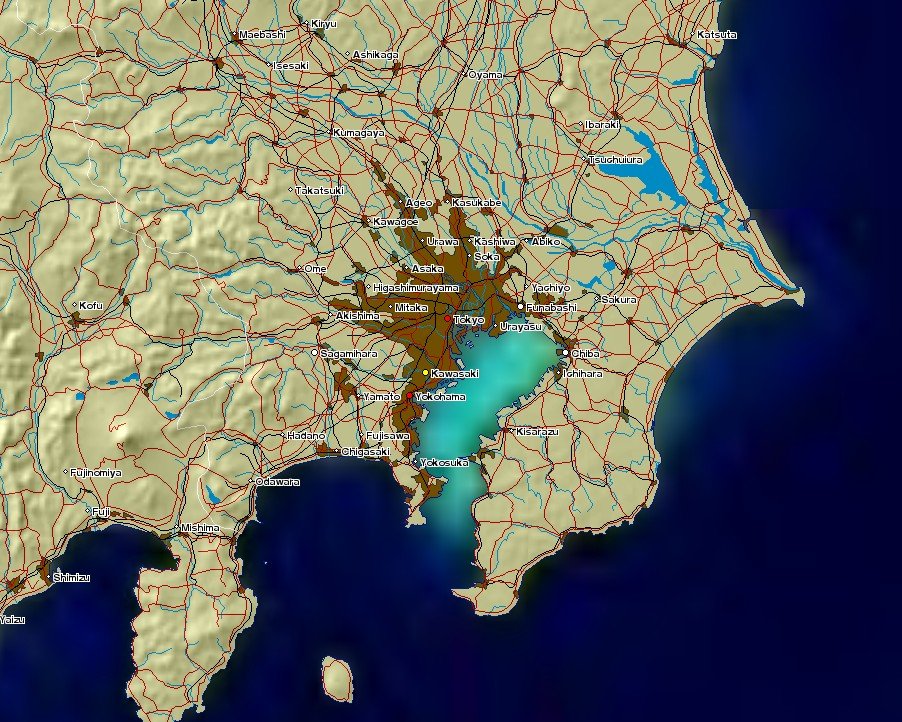

The image displays the Digital Chart of the World (DCW, VMAP0) vector data overlayed on top of the NASA's Visible Earth raster image.

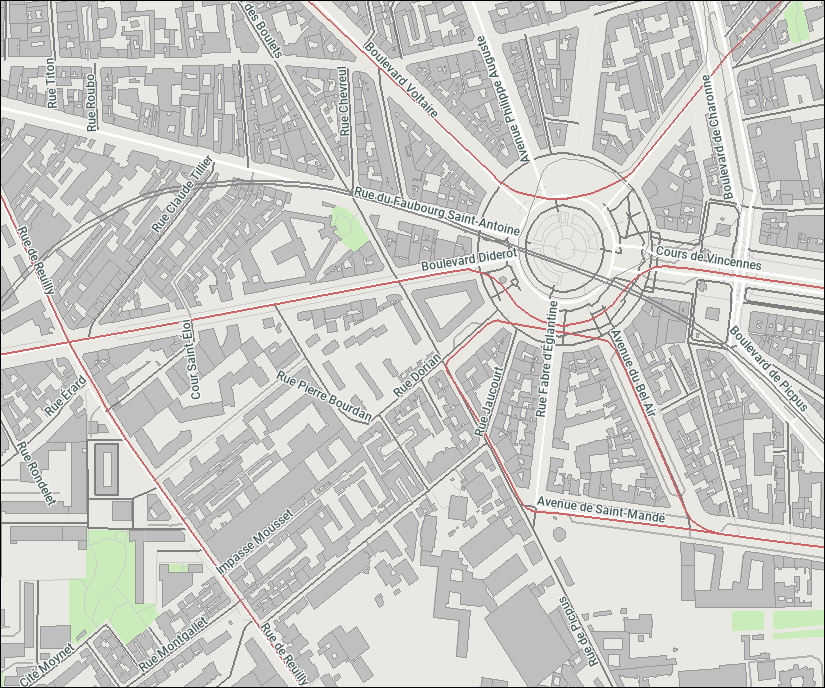

Open Street Map (OSM)
is available for use
with the GLG Map Server and can be
obtained from Generic Logic. This 100 GB dataset contains vector
data for the whole Earth down to the street level and buildings details
(100 GB). The
preprocessed into a hierarchical tiled layout for optimum performance
with the Map Server and includes a complete set of setup files.

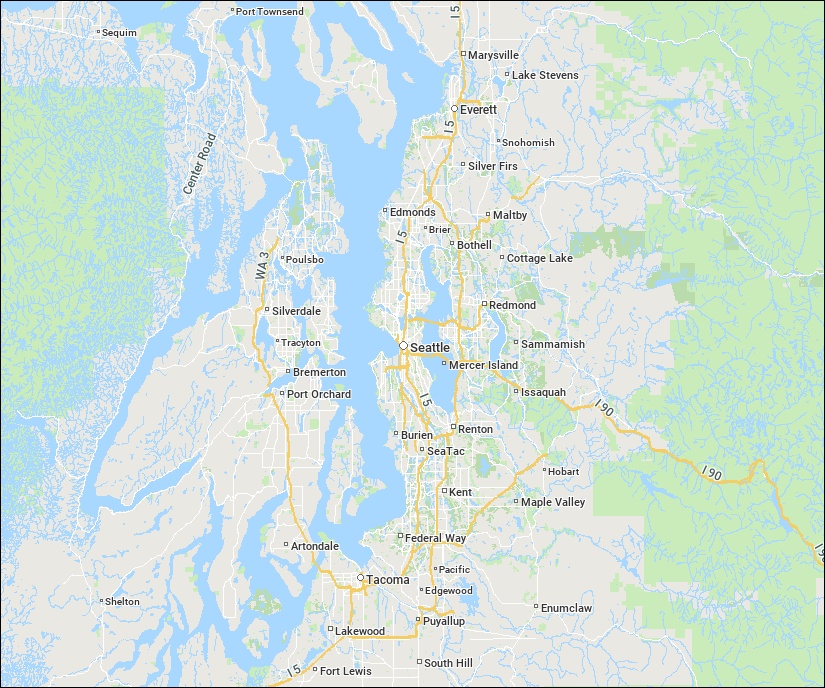

|The map server provides support for an unlimited number of layers. Layers are used to group various geographic features so they can be toggled on and off together in the map image. For example, roads and political boundaries are two possible layers. In addition, the attribute matching feature of the map server enables display of only the features inside a layer that have certain attribute values, allowing virtually unlimited customization.|
|A smaller 10 GB US
set contains GIS data for the entire US down to the street
It contains vector GIS data for states, counties, roads and streets,
populated areas and other detailed information.
The Map Server's label layout negotiation ensures that labels do not obscure each other, and that labels with higher priority are not obscured by less significant labels.
is insufficient or detailed satellite imagery is available for a
specific area, the raster image data may be used.
image data can greatly enhance the look and sophistication of a map
image by providing vivid and colorful details to compliment
the additional vector data (roads, etc.) overlaid on top of the image. The map server supports raster image data in a variety of
The image displays the US 0.5m Aerial Images dataset that provides high resolution (0.5 meters per pixel) aerial data for the United States. The dataset is available on per-state basis (approx. 100 GB per state).
Map Server can import
the NITF and CADRG raster formats, which are
often used for storing scanned maps and chart images. Setup files for
hierarchically tiled datasets may be generated automatically using
The picture shows an example instance of Command and Control Technologies' C3I Surveillance Toolkit (C3iSTK) providing a Common Operating Picture for tactical surveillance and interdiction. Built with the GLG Toolkit and Map Server, it provides real-time tracking and geo-referencing of targets of interest, as well as point and click control and monitoring for a network of sensor systems. Click here for more CCT application images.
data is a special case of the raster image data which can be
used to display elevation as color-coded
thresholds or shaded relief
image. It may also be used to query elevation of a particular
point on the map. All major elevation data formats can be

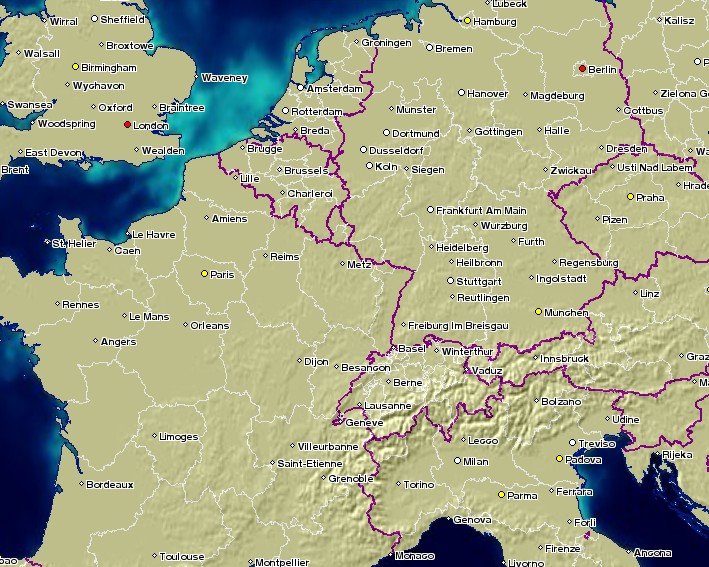

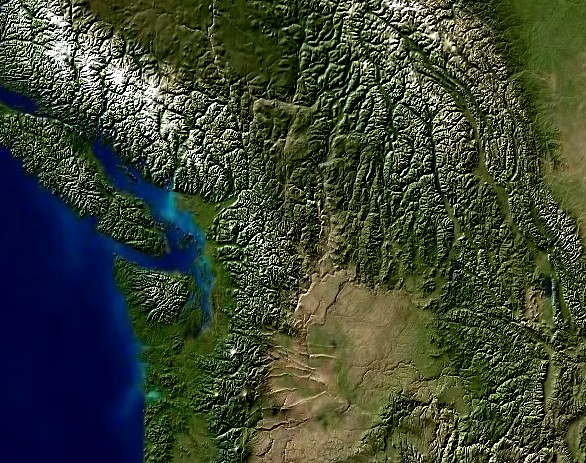

In the picture, the shaded relief image generated from the elevation data in the DEM format is combined with the raster earth image to provide visual elevation feedback. The shaded relief images may be used with both raster and vector datasets.

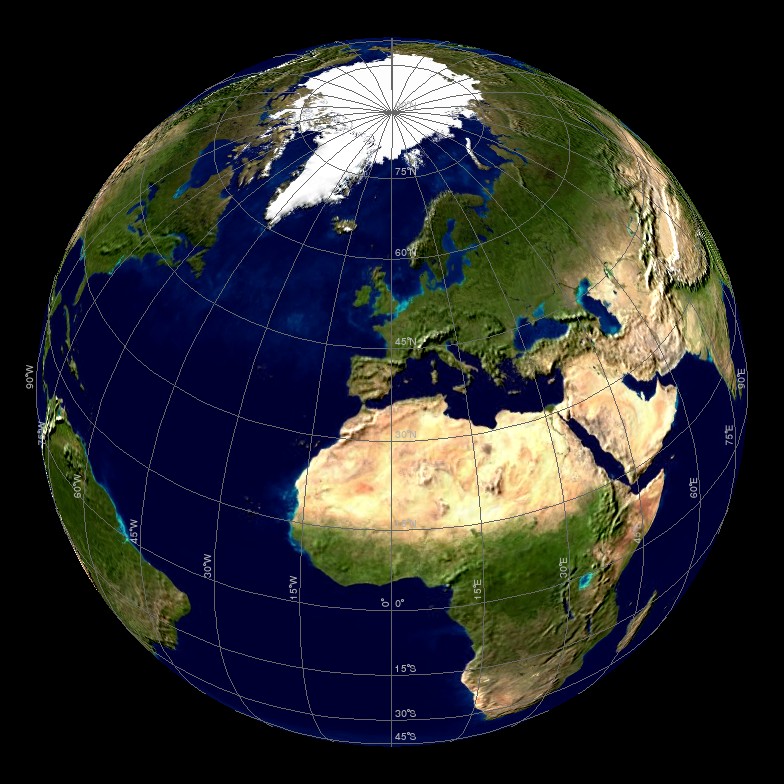

The NASA's Visible Earth raster data shown in the image are projected on the fly to the orthographic projection to display the globe.
|When the map
server is used with
the GLG Toolkit, dynamic icons
can be easily added on top of the map display. The Toolkit handles real-time updates of icon positions,
mouse, icon tooltips, changing
icon shapes depending on the zoom factor and changing icon
colors to show icon status. The map server
is integrated into the GLG drawing as a GIS object, which can be edited
with the GLG Graphics Builder for rapid
Object may also be embedded in a bigger GLG application to

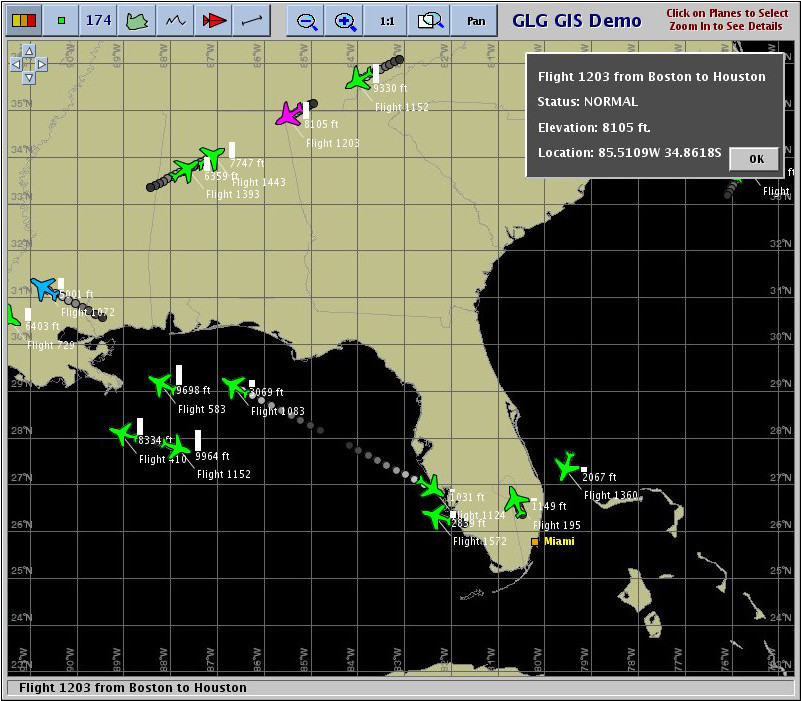

handle the GIS portion of the graphics as shown in the second image. It
shows a sample instance of the Command
Click here for more CCT application images.
of the World
(DCW VMap0 / VPF)
dataset is a compact (2 GB)
dataset that provides country,
political boundary, vegetation, roads, railroads and other
data for the whole world.

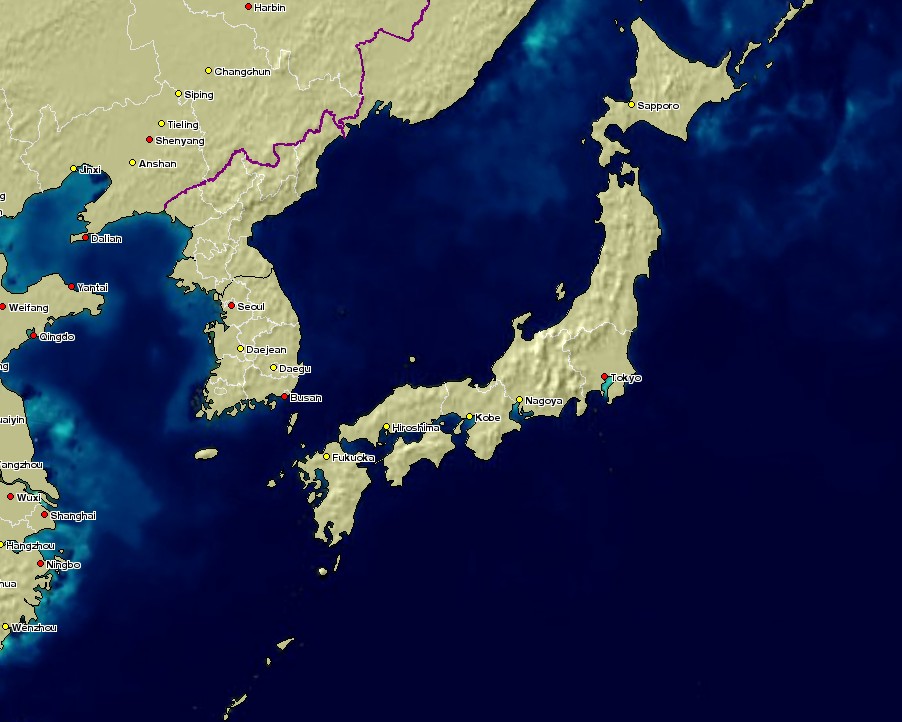

In the image, the world cities data are displayed on top of the Digital Chart of the World, and the NASA's Visible Earth raster image is used as a background.

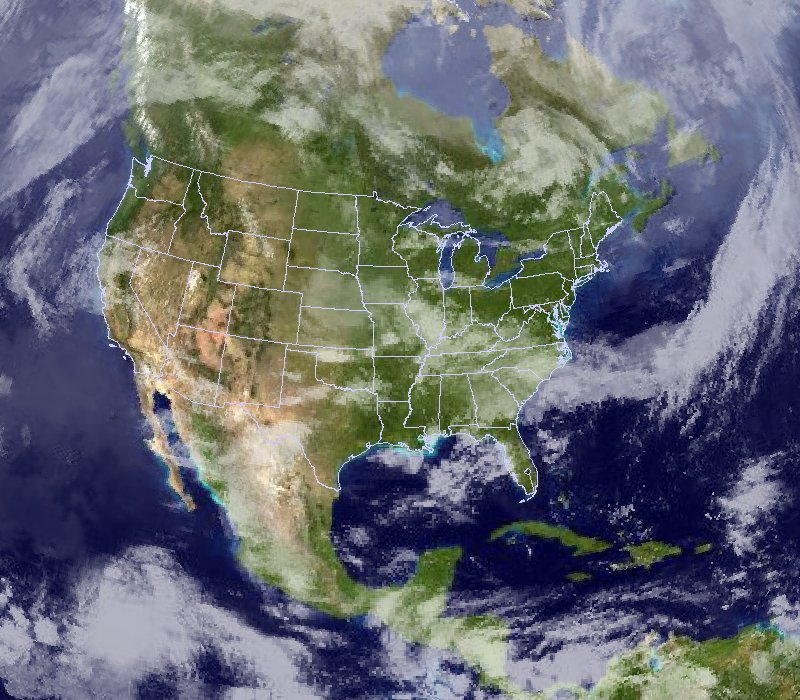

provide a visually pleasing and flexible look, the GLG Map Server
supports 3 different alpha-blending modes and transparency.
in map images can produce visually appealing
transparent and partially
opaque effects. For example, alpha blending can be used to render
transparent weather and cloud maps
on top of other vector or raster
data. Alpha blending can also be used to create transparent overlays
more important data.
simple change of color is not enough to satisfy the customization needs
of a user, the GLG Map Server provides a unique system of attribute
Attributes of vector data can be automatically changed based on the
data. For example, the size and color of a city marker can change based

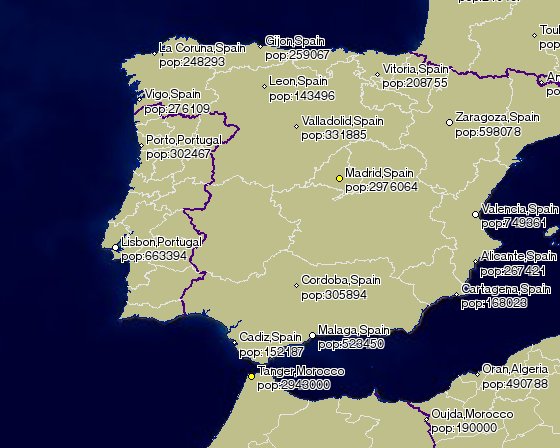

the city's population. The label rendered next to the marker can
include the city's name, population, lat/lon coordinates and any other
attributes as shown in the image. Another popular example is
changing of line width and color of a road based on its type.
available map servers on the market utilize complex relational
and intricate setup procedures, the GLG Map Server provides a
sophisticated hierarchical tiling mechanism for both image
and vector data that is easily configured using ASCII setup files. When
tiling is used, the Map Server loads only the tiles that are required
for rendering a requested map area. The Map Server provides tiling
utilities that may be used to automatically generate setup files for
tiled datasets. The user can easily select
subsets of data will be used for a particular setup, using aliases to group sets of layers to

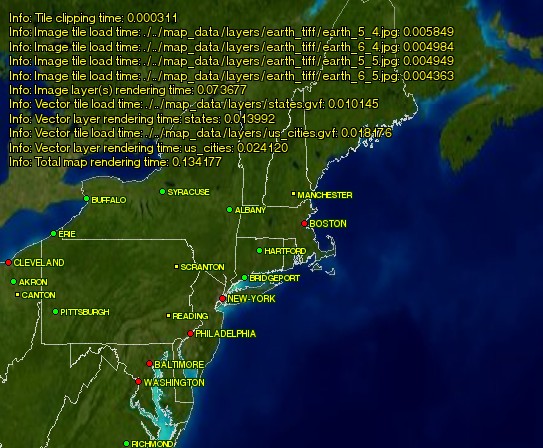

The picture shows a tiled raster image with a verbose tile diagnostic output.
enabled applications will need to handle requests on both a global
and small high detail scale. When a requested image includes
image data, large amounts of data may be required in order to fulfill a
encompassing a large area. In order not to read and process an
amount of data, the GLG Map Server provides fallback layer
When zoomed out sufficiently, a smaller image can be used instead of a
detailed one in order to optimize map server performance.
The GLG Map Server can operate both as a web-based GIS Map Server or stand-alone library API. In the stand-alone mode, the map server can be used as a library linked with a C/C++ program; this mode may be used for real-time applications installed on local machines that want to avoid using an Internet connection to access maps. In the web-based server mode, the map server can be used to provide images to a Java, C/C++/C# or ActiveX clients without a need to install GIS data locally. The web-based map server complies with the OpenGIS standard.
Server utilizes its own engine for rendering primitives such as images,
polygons and text. As a result, map images generated on various
platforms are guaranteed to be identical. Also, due to its independence
of the underlying windowing system, the map server runs on both Unix/Linux and Windows platforms, and can be used
on any headless
